ScanArm
|
1238888 |

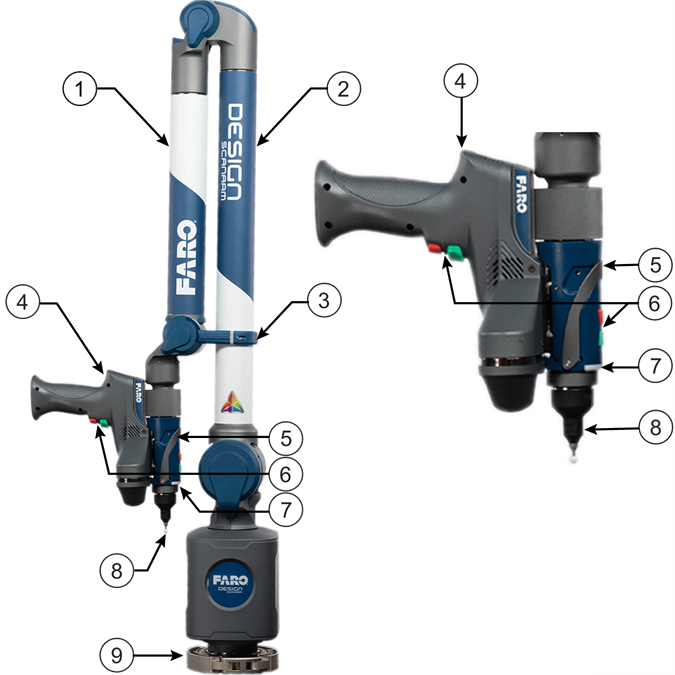

These are the key components and controls for the
|
① Tube 1 ② Tube 2 ③ Storage Hook ④ FARO Prizm Laser Line Probe ⑤ Probe Locking Lever |
⑥ Buttons ⑦ Handle LED ⑧ Probe ⑨ Base Collar |
|
7-Axis |
|
|

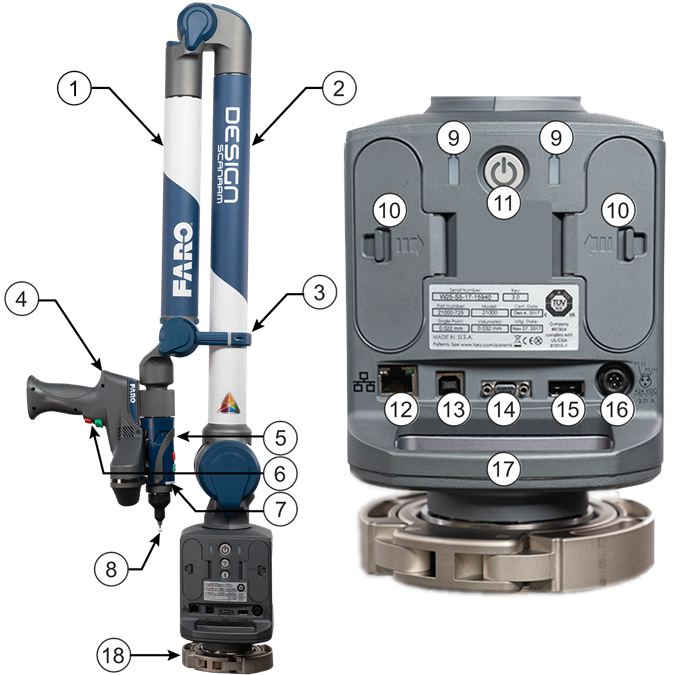

① Tube 1 ② Tube 2 ③ Storage Hook ④ FARO Prizm Laser Line Probe ⑤ Probe Locking Lever ⑥ Buttons ⑦ Handle LED ⑧ Probe ⑨ Battery Power Indicators |
⑩ Battery Doors ⑫ Ethernet Port ⑬ USB Port ⑭ Auxiliary Port ⑮ Powered USB Port ⑯ Power Supply Port ⑰ Lifting Handle ⑱ Base Collar |
|
7-Axis |
|
