Referencing the Encoders

1238888

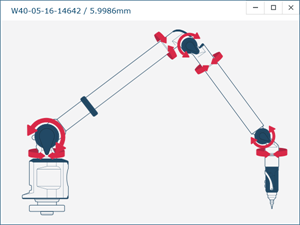

You must first reference each of the seven encoders in the ScanArm before the system can output data. Pull the handle and each tube out of the rest position and move to make each encoder move. Each encoder must move to reference. The Reference Encoders dialog box shows all seven encoders in error until each is referenced. In a systematic manner, rotate joints 1 through 7 until each warning clears.

Referencing the Seven Encoders

The ScanArm must be properly connected to the host computer running the measuring software to see the Reference Encoders dialog box on the host computer.
