Line Types

Many types of lines are available for lines and curves, and you can customize them with options in the tools panels.

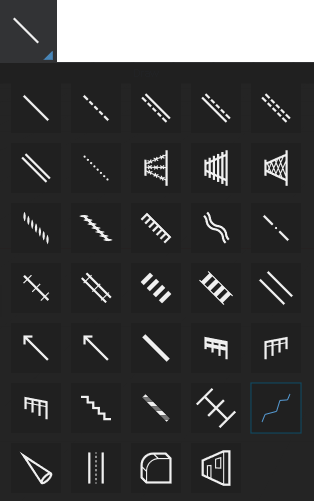

The following line types are available:

In addition to typical line settings, you can customize the following:

Polyline	Add arrows to the line ends, and have the line follow the terrain of the diagram.
Dash	Adjust the dash length and spacing, add arrows to the line ends, and have the line follow the terrain of the diagram.
DashSolid	Adjust the dash length and spacing, add arrows to the line ends, and have the line follow the terrain of the diagram.
Solid Dash	Adjust the dash length and spacing, add arrows to the line ends, and have the line follow the terrain of the diagram.
Double Dash	Adjust the dash length and spacing, add arrows to the line ends, and have the line follow the terrain of the diagram.
Double	Add arrows to the line ends, and have the line follow the terrain of the diagram.
Dotted Line	Adjust the dot size, spacing, and fill, add arrows to the line ends, and have the line follow the terrain of the diagram.
Barbed Fence	Customize barb wire and fence post characteristics.
Post Fence	Customize board and fence post characteristics.
Fence Chainlink	Customize chain link characteristics.
Scuff Mark	Customize a scuff mark.
Critical ScuffMark	Customize a critical scuff mark.
Yaw Mark	Customize the yaw mark.
Skid	Customize skid width and spacing.
Property Line	In addition to typical line tool parameters, you can customize the dashes for the property line.
Railroad	Customize crosstie width and spacing.
Railway Track	Customize crosstie width and spacing, and include rails.
Concrete Barrier	Customize fill properties for the concrete barrier.
Crosswalk Continental	Customize crosswalk spacing and thickness properties.
Crosswalk Ladder	Customize fill properties for the crosswalk ladder and rail.
Crosswalk Standard	Customize fill properties for the crosswalk ladder.
Directional Line	Customize the direction line’s arrows.
Guardrail Double	Customize the characteristics of the guard rail.
Guardrail Left	Customize the characteristics of the left guard rail.
Guardrail Right	Customize the characteristics of the right guard rail.
Stairs	Customize characteristics such as the number of stairs, parameters for steps and railings, and other details.
Trajectory Cone	Customize characteristics of a trajectory cone.
Police Tape	Customize the appearance characteristics of the police tape.
Curb	Customize the appearance characteristics of the curb.
Structure	Customize the appearance characteristics of the structure.
