Viewing Point Clouds in Pano Mode

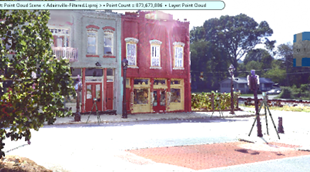

You can view the point cloud in Pano-mode, which sets the panoramic image from the FARO Focus scanner as the background. Pano images are only available with scans obtained from a FARO-supported scanner like the FARO Focus. Pano images are not included in scans taken with the FARO FreeStyle, or from scans created via a merge or conversion process.

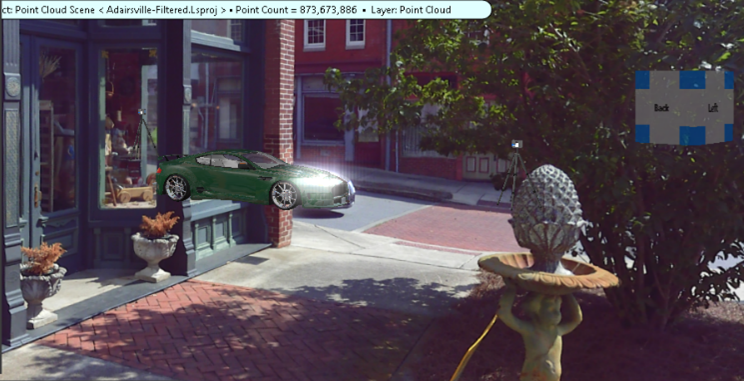

If you turn the points off while in pano-mode. You will see the scene geometry (models, line work etc..) against the panoramic background.

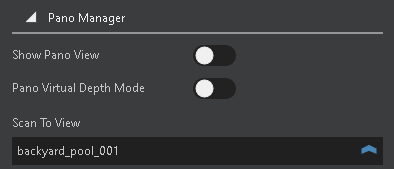

Pano Virtual Depth Mode

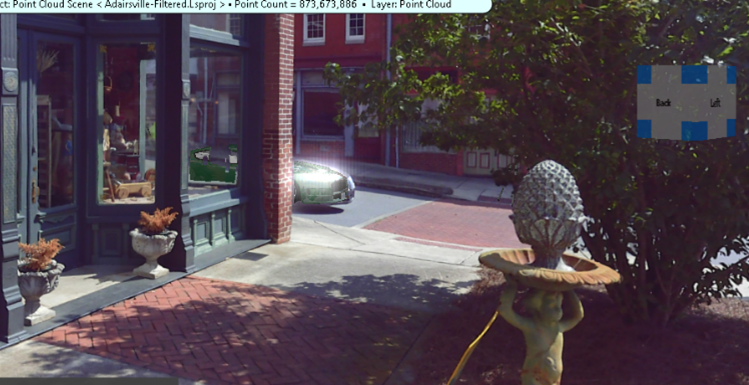

With Pano Virtual Depth Mode enabled, the software detects the depth of the panoramic image using the hidden point cloud to obscure the scene geometry. This provides a better display.

Scan To View

Select the scan to view. This provides the same functionality as double-clicking a visible scanner.
