Point Cloud Registration Report

You can run a report that shows the results of a point cloud registration operation.

To run a point cloud registration report following point cloud registration:

1. From the Point Clouds ribbon, select the Registration Report button.

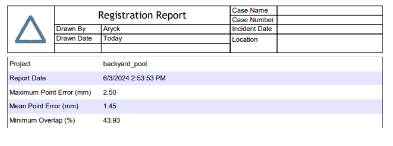

The registration report displays.

The following information is available:

Report Information	Information to identify the report, including: The name of the creator of the report, and the date the report was created. The case name and case number. The incident date. Location information.
Project	The project name.
Report Date	The date the report was created.
Maximum Point Error	The maximum point error of all shown scan pairs.
Mean Point Error	The mean point error of all shown scan pairs.
Minimum Overlap %	The minimum percentage overlap of all shown scan pairs. Typically, values of over 5% are acceptable.
