Device Center Panel
1238888 |
The Device Center command opens the Device Center panel and contains a list of all active (detected) devices. The Device Center panel contains a list of all active devices with the properties of each associated device. You can also press the P hot key to show the Device Center panel.

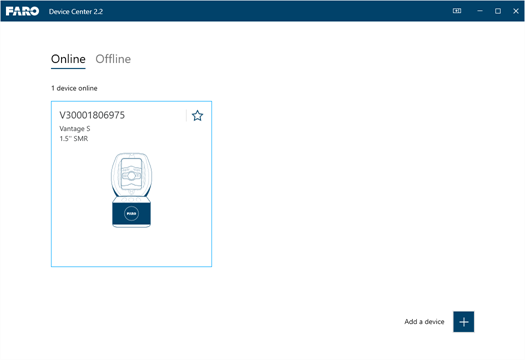

Figure 12-1 Device Center Panel
Double-click the Vantage from the list to see the details. For more information, see Details.
Add a Device
FARO CAM2 2021 automatically searches for any Laser Tracker connected to your computer.
If you do not see your Vantage, click Add New Device (Plus Sign (+)):
-
FARO CAM2 2021 searches for any Laser Tracker. Click the serial number of your Vantage and notice that there may be a wired and a wireless option.

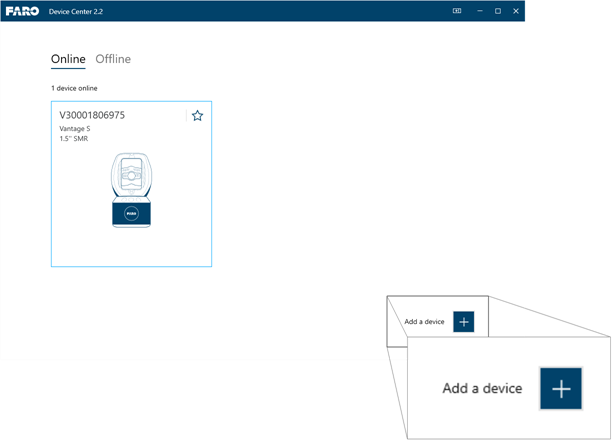

Figure 12-2 Add a Device button
If you do not see your Vantage, click Add a Device.
-
FARO CAM2 2021 automatically searches for any Laser Tracker connected to your computer. If you do not see your Vantage, click Add Manually.
-
Click and enter the Vantage ID nuumber or the IP address.
-
Click Add.
The Vantage ID is the last four digits of your Vantage serial number.
-
When set in Wired mode, the default IP address for a Vantage is 128.128.128.100.
-
When set in Wireless mode, use your Vantage ID. For more information on connecting the Vantage to your computer, see Wireless Connection.
Multiple Vantage Users
A lock system prohibits two or more users on different computers from performing write functions (such as changing probes, changing distance modes, etc.) to the same Vantage concurrently. Read functions (such as taking readings) are not affected by the lock system.
The Device Center panel will overwrite the probe setting in the device with the probe setting from the local file on startup, which creates a conflict if two users attempt to access the device with two different probe sizes.
For more information on connecting, configuring, and measuring with multiple Vantages, see the Multiple Devices section of the Devices chapter in the FARO CAM2 2021
