Customize

1238888

Use the Customize command to change the default settings of CompIT.

Changing parameters may result in a less than optimal compensation and decreased measurement accuracy.

In the CompIT dialog box, click the Advanced tab and then click Customize. This opens the Customize FARO CompIT dialog box which has four separate tabs which allow you to customize the General, Pointing Compensation, Repeatability, and Pointing Interim Test settings.

• Click Load Default settings to load the default or factory settings.

• Click Load Saved settings to load any settings that you have previously saved.

• Click OK to apply any changes and continue.

• Click Cancel to exit without applying changes.

General

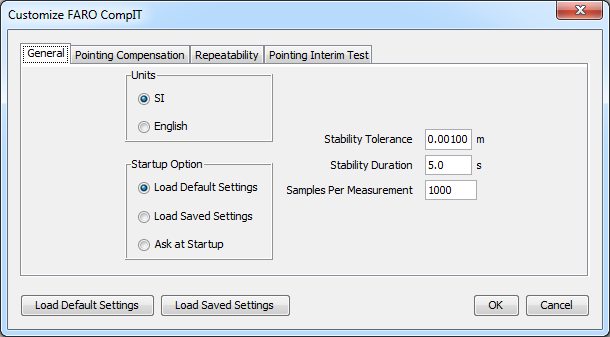

Use the General tab in the Customize FARO CompIT dialog box to set the general parameters of CompIT.

• Units - The unit of measurement for all of the routines when CompIT is started from the FARO Tracker Utilities program. Choose SI for Millimeters or English for Inches.

• Stability Tolerance - The maximum allowable movement of the SMR during the stability checks performed prior to an automatic measurement.

• Stability Duration - The amount of time the SMR must remain stable before the any measurement starts.

• Samples Per Measurement - The number of measurement samples for each measurement. Each measurement is an average of the samples.

• Load Default Settings - Choose this to load the factory default CompIT settings when starting CompIT.

• Load Saved Settings - Choose this to load custom CompIT settings saved to the computer when starting CompIT.

• Ask at Startup - Ask which setting you would like to use when starting CompIT, factory default or custom settings saved to the computer.

Pointing Compensation

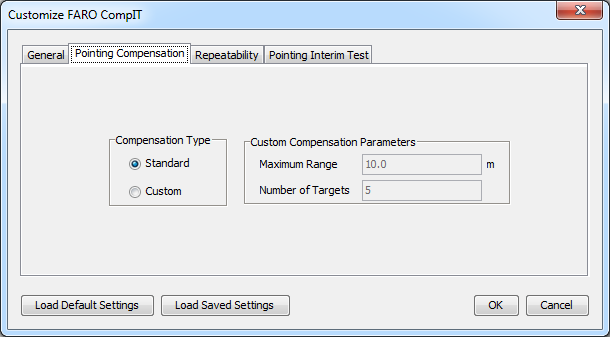

Use the Pointing Compensation tab in the Customize FARO Tracker Utilities dialog box to set the parameters for the Pointing Compensation routine.

Use the Standard Compensation Type or choose the Custom radio button and set the following parameters:

• Maximum Range: The maximum distance for the ADM CompIT routine. Each desired distance locations is a proportional distance of the maximum distance.

• Number of Targets: The number of targets to measure in the routine.

Repeatability

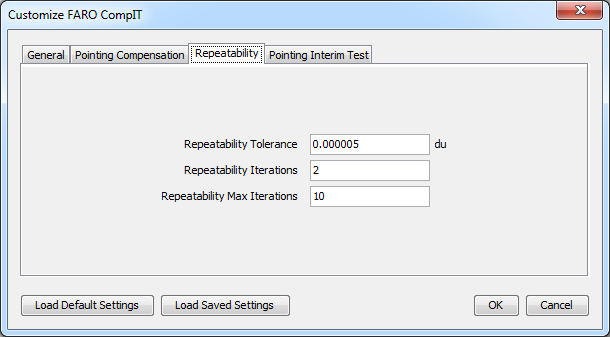

Use the Repeatability tab in the Customize FARO CompIT dialog box to set the repeatability parameters for CompIT.

• Repeatability Tolerance: Set the maximum error for consecutive measurements for each location during the Pointing Compensation and Squareness Compensation.

• Repeatability Iterations: Set the number of repeating consecutive measurements for each location during the Pointing Compensation and Squareness Compensation.

• Repeatability Max Iterations: Set the maximum number of measurement attempts for each measurement before generating an error message prompts you to review your environment.

Pointing Interim Test

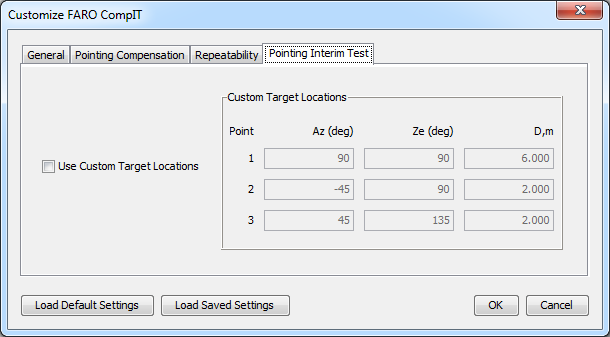

Use the Pointing Interim Test tab in the CustomizeFARO CompIT dialog box to set the parameters for all Pointing Interim Tests.

• Select the Use Custom Target Locations check box and enter values for the three target locations.
