Indicator LEDs

1238888

The Vantage lights indicate the following:

① Red Aperture Light

② Green Aperture Light

③ Amber Aperture Light

④ Blue Aperture Light

Figure 2-3 Vantage Indicator LEDs

All Lights Blinking - Boot Sequence

Red Aperture Light

• Solid - Vantage is measuring

• Blinking - Vantage is measuring in scan mode (multiple measurements)

Green Aperture Light

• Off - Not locked on target

• Solid - Locked on target, valid beam and target position

• Blinking - Locked on target, invalid beam and target position

Before the Vantage is initialized the green aperture light may blink even if a target is not reflecting the beam back to the Vantage.

Amber Aperture Lights - Application specific indicator

• Solid

• Slow Blinking

• Fast Blinking

Blue Aperture Lights - Application specific indicator

• Solid

• Slow Blinking

• Fast Blinking

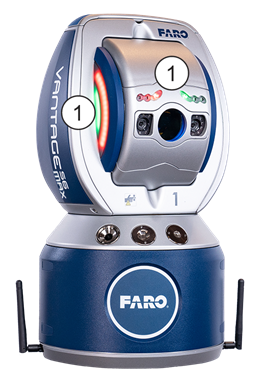

① Indicator LEDs
Figure 2-4 Laser Tracker Vantage Front Left View	Figure 2-5 Laser Tracker Vantage Front Right View

The Blue and Amber Aperture Lights indications are explained later in this and other FARO user manuals. For more information, seeAcquiring the Laser Beam with Follow Me and Acquiring the Laser Beam with Find Me.
