FARO RetroProbe

1238888

The RetroProbe is an optional accessory product which greatly increases the versatility of the Vantage System. There are two versions of the RetroProbe: 100 and 400. The FARO RetroProbe 100 facilitates the measurement of surface features such as holes, small pockets, corners, and other features which are difficult or impossible to probe with the standard SMR. The RetroProbe 400 expands on the versatility of the RetroProbe 100 by providing easier manipulation of the device and allowing you to measure in locations up to four inches in depth.

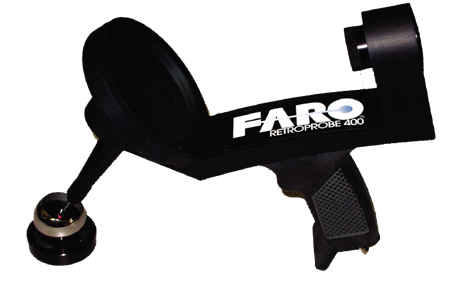

Figure 2-12 RetroProbe 400

RetroProbe 100 kit - FARO part # 950-00-016

RetroProbe 400 kit - FARO part # 950-00-054
