FARO Laser Line Probe

1238888

The FARO Laser Line Probe (LLP) is a non-contact probe that collects digitized points using a line of projected laser light and a camera. The laser light is projected onto your part as a line, the camera takes a picture of the shape and position of the line, and several points are then sent to the computer. This is done many times in a second to quickly measure curved surfaces, or surfaces that can not be measured using a standard ball probe.

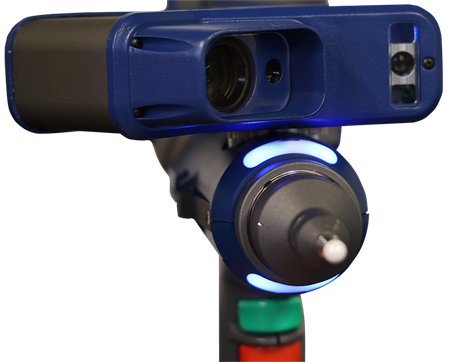

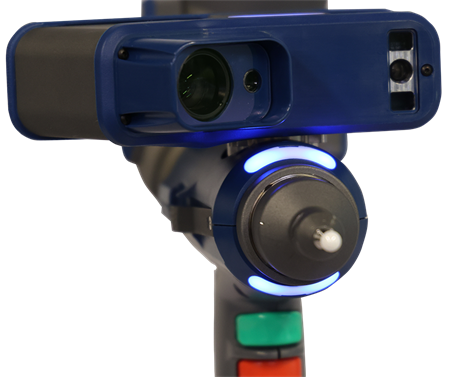

FARO Blu xR Laser Line Probe	FARO Blu xP

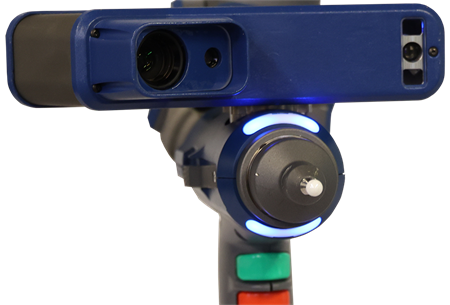

FARO Blu xS	FARO Blu xE

The FARO only connects to a 7-Axis Quantum Max.

There are four models of the FARO :

• FARO Blu xR: Suited for high-precision tasks or areas on a part with tight tolerances to capture data with up to 30% better accuracy and resolution.

• FARO Blu xP: Offers a balance of the xR for resolution and the xS for speed so coverage and accuracy blend together for overall productivity.

• FARO Blu xS: Best for large parts or expansive surface areas when data collection speed is top priority - extra‑wide laser stripe delivers double the coverage in a single pass, allowing users to collect data over 65% faster.

FARO Blu xE^*: An entry-level, reduced performance model.

Computer Requirements

The FARO will generate thousands of points in a short amount of scanning time. For best results, your computer must have a powerful Central Processing Unit (CPU) and a large amount of Random Access Memory (RAM). FARO recommends the following:

When using the Laser Line Probe, connect the Quantum Max to the computer using the USB cable. However, in ideal conditions, Ethernet and WLAN can support the data rates of the LLP.
