7-Axis Quantum Max

1238888

These are the key components and controls for the 7-Axis Quantum Max Model 41000.

① Tube 1

② Tube 2

③ Storage Hook

④ 7-Axis Handle (Removable)

⑤ Buttons

⑥ Probe Locking Lever - Front Mount

⑦ Probe Locking Lever - Top Mount

⑧ Top Probe Mount

⑨ Handle LED

⑩ Probe

⑪ Base Collar

Figure 1-3 7-Axis Quantum Max front view

① Tube 1

② Tube 2

③ Storage Hook

④ 7-Axis Handle (Removable)

⑤ Buttons

⑥ Probe Locking Lever - Front Mount

⑦ Probe Locking Lever - Top Mount

⑧ Top Probe Mount

⑨ Handle LED

⑩ Probe

Figure 1-4 7-Axis Quantum Max back view

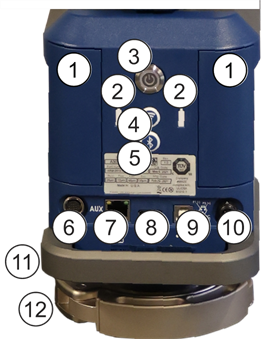

① Battery Doors

② Battery Power Indicators

③ Power On/Off Button

④ WLAN On/Off Indicator

⑤ Bluetooth On/Off Indicator

⑥ Auxiliary Port

⑦ Ethernet Port

⑧ Powered USB Port

⑨ USB Port

⑩ Power Supply Port

⑪ Lifting Handle

⑫ Base Collar

Figure 1-5 7-Axis Quantum Max Base back view
