FARO Laser Line Probe

1238888

The FARO Laser Line Probe(LLP) is a non-contact probe that collects digitized points using a line of projected laser light and a camera. The laser light is projected onto your part as a line, the camera takes a picture of the shape and position of the line, and several points are then sent to the computer. This is done many times in a second to quickly measure curved surfaces, or surfaces that can not be measured using a standard ball probe.

FARO Blu	FARO Prizm

The FARO Laser Line Probe only connects to a 7-Axis Quantum.

There are three models of the FARO Laser Line Probe:

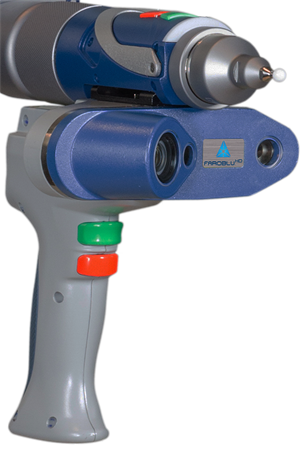

• FARO Blu^HD (scan points only)

• FARO Blu^SD (scan points only) : Discontinued October 2019.

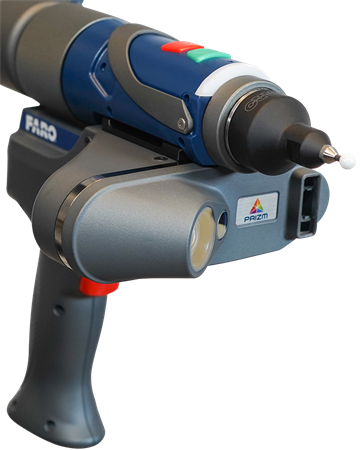

• FARO Prizm (scan points with color values)

Computer Requirements

The FARO will generate thousands of points in a short amount of scanning time. For best results, your computer must have a powerful Central Processing Unit (CPU) and a large amount of Random Access Memory (RAM). FARO recommends the following:

Connect the Quantum to the computer using the USB cable. The Ethernet, WLAN, or Bluetooth connections do not support the data rates of the LLP.
