Devices

1238888

The Devices group controls the connection settings between your Quantum and your computer.

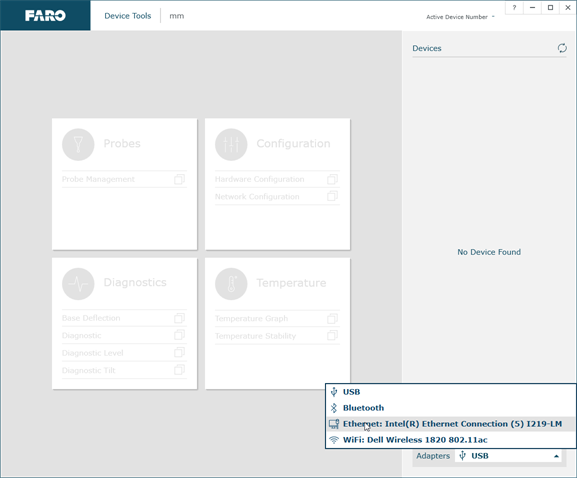

Figure 3-24 Connecting a Quantum

In the Adapters drop-down list, choose the type of connection:

• USB

• WLAN

• Bluetooth

• Ethernet

USB

Choose USB if you connection is using a USB cable. Your Quantum will appear at the top of the Devices list. If necessary, click the Refresh button to search the computer for your Quantum.

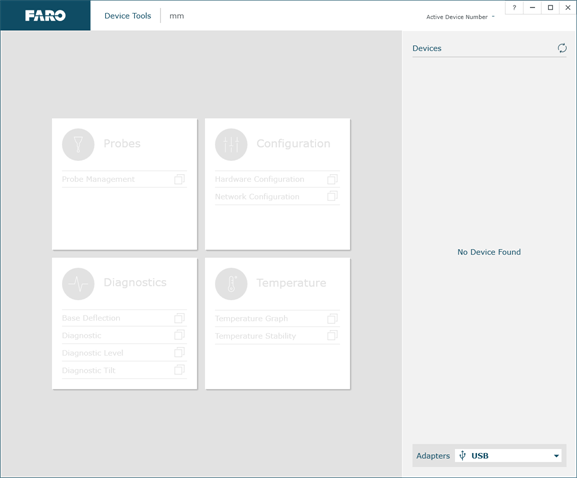

Figure 3-25 USB Connection

• Click your Quantum to make it the active device.

Figure 3-26 Choosing the Active Device

Ethernet

Choose Ethernet if you connection is using an Ethernet cable. Your Quantum will appear at the top of the Devices list. If necessary, click the Refresh button to search the computer for your Quantum.

• Click your Quantum to make it the active device.

Figure 3-27 Choosing the Active Device

Deleting The Ethernet Connection

To delete the Ethernet connection, highlight the Ethernet connection and click the trash can icon.
