View, Edit and Move 360° Photos

1238888

Adding 360° photos adds visual support and documents progress which may be helpful to identify critical points in a project.

Time-travel through your Project

Click the icon to go to the walk mode view.
Open the dropdown list at the top.

This dropdown list contains all 360° photos of one waypoint taken at different times. This feature is very useful to visualize progress in a project. This dropdown also contains other data sets showing the scene in a 1.5m radius around the currently active waypoint.

Select the 360° photo you want.

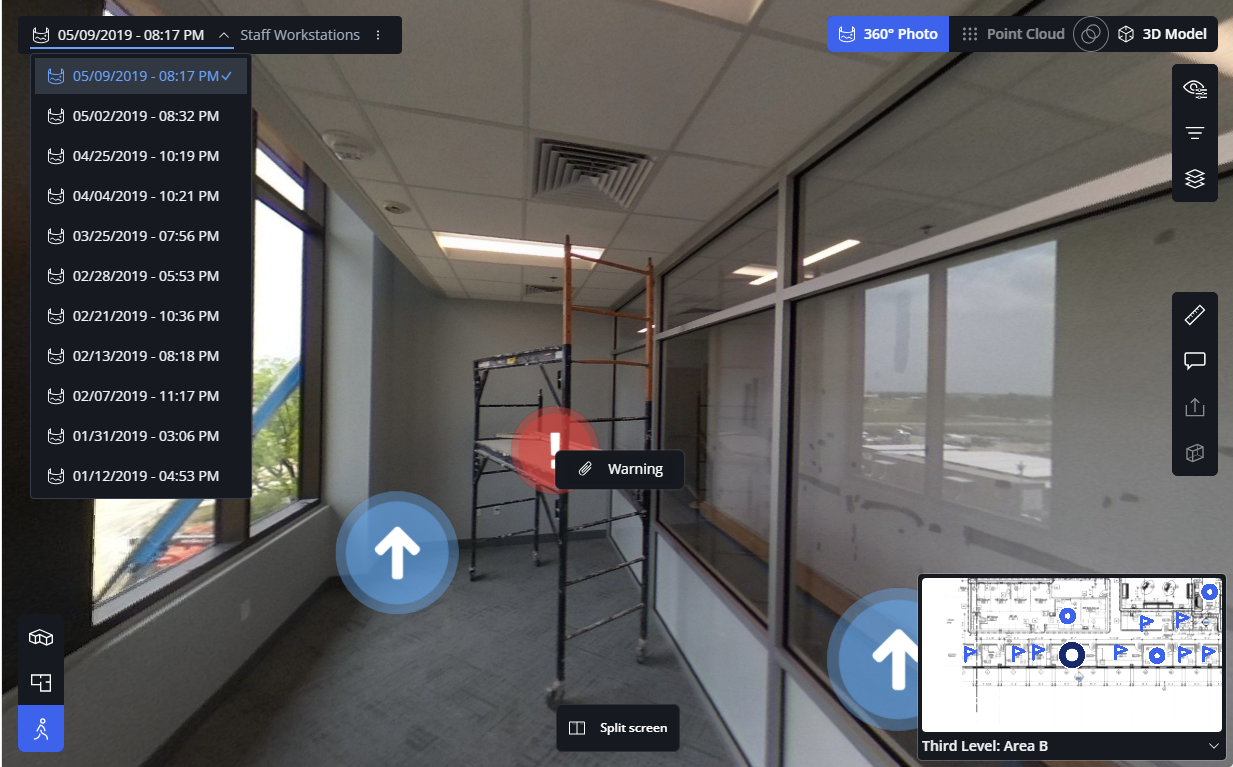

Figure 1-151 Time travel

You can edit the timepoint of a 360° photo and you can also move a 360° photo to a different waypoint, see below.

Edit, Move, Download or Delete a a 360° Photo

If required: select the 360° photo from the dropdown list as described above.
Click the three-dots menu behind the 360° photo name at the top of the screen.

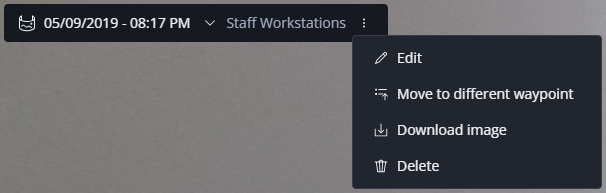

Figure 1-152 360° photo options

Edit 360° Photo

In the context menu, click Edit.
The Edit form is displayed.

Figure 1-153 Edit 360° photo

You can change the 360° photo name if required.

Click the calendar icon in the Time point field.
Select the date and time you want.

You can also enter the timepoint manually in the Time point field.

Click Save.

Move 360° Photo to another Waypoint

In the context menu, click Move to different waypoint.
The Move form is displayed.

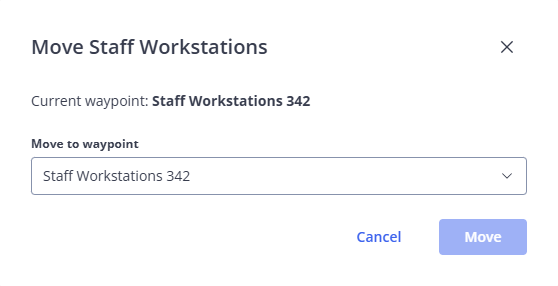

Figure 1-154 Move 360° photo

Select the waypoint you want from the Move to waypoint dropdown list.

This list contains all waypoints of all areas of your project.

Click Move.

Download 360° Photo

In the context menu, click Download.

The 360° photo will be downloaded.

You can also upload a 360° photo to a waypoint or location marker, see Add a 360° Photo to a Waypoint or Location Marker for more information.

Delete 360° Photo

In the context menu, click Delete.
In the Delete timepoint form click Delete to confirm the deletion.

Note that you cannot undo a deletion once it is confirmed.
