Error and Status Indicators

1238888

Visible through the FaroArm Driver interface to the measuring software, the Gage generates and displays errors in the FaroArm dialog box, and the Handle LED turns Solid Red.

The Gage does not output data until the error has been cleared.

• The Encoder End Stop warnings - This warning appears when an encoder reaches one end of its rotation.

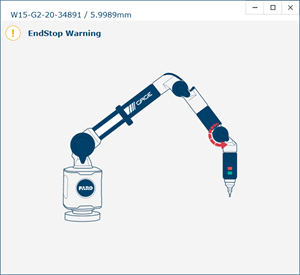

Gage End Stop Warning

• The Tube Stress warnings - This warning appears when there is stress on one of the tubes or encoder joints. The stress stop warnings may be disabled. See Hardware Configuration.

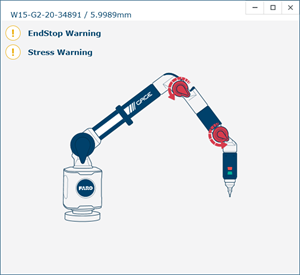

Gage Stress Stop Warning

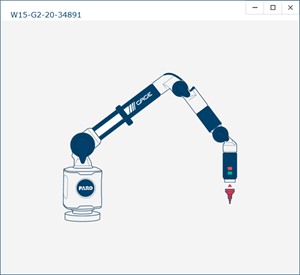

• The Missing or Unknown Probe warning - This warning appears when the probe is missing, unknown, or if the probe electronics are damaged.

Gage End Stop Warning

Other errors appear in a message box.
