Configuration

1238888

The Configuration group controls your Gage’s general hardware and advanced connection settings.

Hardware Configuration

In the Hardware Configuration dialog box you can:

Click Save to accept the changes. Click the Cancel button to discard any changes and exit the command.

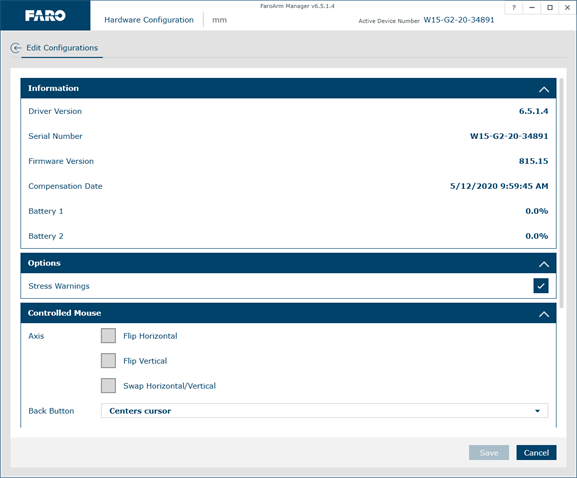

Hardware Configuration dialog box

Stress Warnings: Clear this check box to disable the stress warnings.

Controlled Mouse: The axis movement of the mouse cursor can be switched as it relates to the movement of the probe.

Set an option for the device’s Back (Red) button. These options are ignored during any measurement command.

Tracking Speed: Adjust the speed of the cursor is adjusted using the Tracking Speed slider. Move the slider to the left to decrease, and to the right to increase the tracking speed. You can also enter a value between 0 and 1000 in the field to the right of the slider.

Network Configuration

In the Network Configuration dialog box you can:

Click Close to exit.

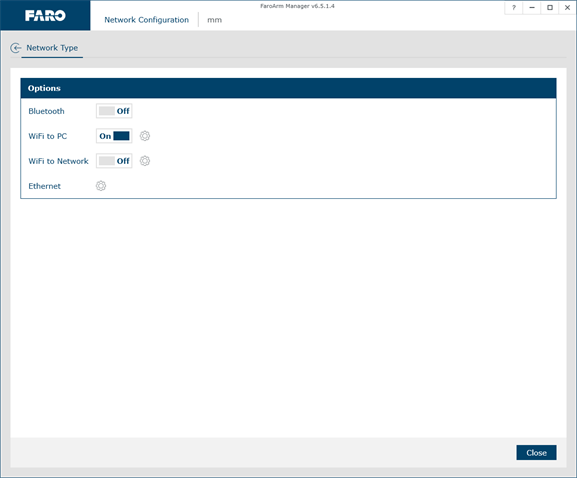

Network Configuration dialog box

Click the settings button next to each connection type to change the connection settings.
