Power Supply
|
1238888 |
This section describes that latest revision of the Power Supply. This revision change happened on new units shipped after June 2019. For detailed information about the previous revision, contact your Customer Service Representative by Phone, Fax or Technical Support.
The Power Supply (FARO part # 820-000192-000) provides DC power to the Vantage. The Power Supply contains two connectors:
-
AC Power Input
-
DC Power Output
You will use two cables to connect it to your power source and the Vantage:
-
AC Power cable (FARO part # 115-000080-NNN) connects between the AC Input connector and your power source (single phase receptacle with Earth GND).
The last three digits of the power cord part number change for different countries. To find the correct part number for your country, contact your Customer Service Representative by Phone, Fax or Technical Support.
-
DC Power cable (FARO part # C-CBL-08701-000-10) connects between the DC output connector and the Power Supply connector on the Vantage. The DC Power cable has a pre-installed adapter (FARO part # 115-000214-000) to connect to the Power Supply.
The last two digits of the power cable part number change for the length of the cable. To find the correct cable length, contact your Customer Service Representative by Phone, Fax or Technical Support.

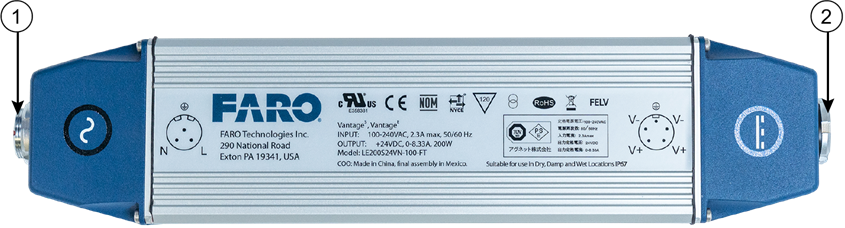

The AC and DC connectors are identified with appropriate symbols as shown in Figure 2-6.
① AC Input Connector
② DC Output Connector
The Vantage AC Power cable, 115-000080-NNN, is Not designated for general purpose use and shall only be used with the Vantage Power Supply (820-000192-000).

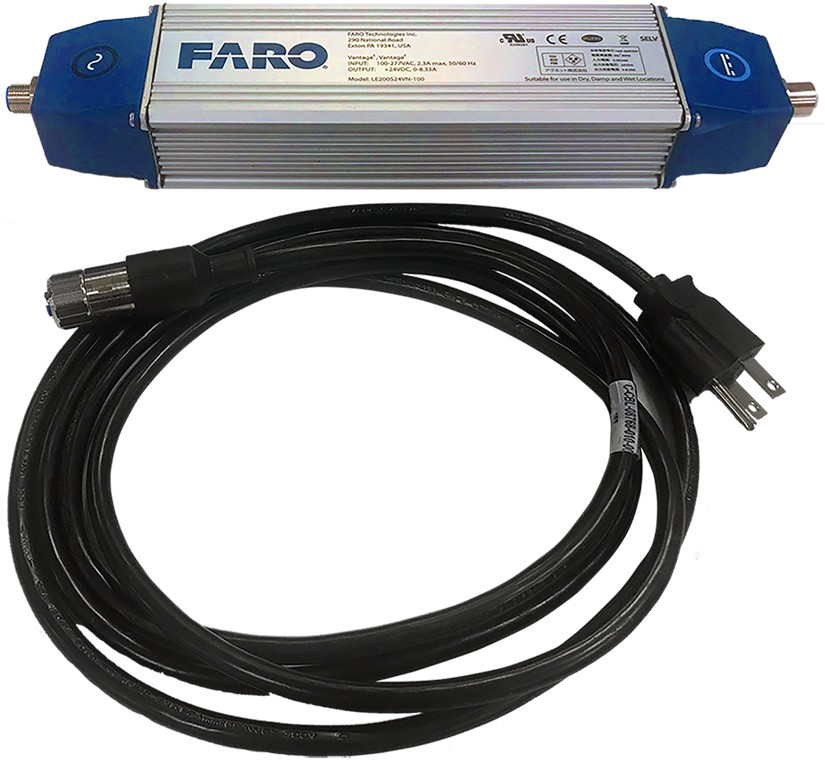

Figure 2-7 AC Power Cable and Power Supply
The last three digits of the power cord part number change for different countries. To find the correct part number for your country, contact your Customer Service Representative by Phone, Fax or Technical Support.
You can also power your Vantage with the Battery Box Kit (FARO part # C-ACC-08989-000-00) that provides portable power for up to 8 hours. For more information, see the FARO Laser Tracker Accessories Manual.
The last two digits of the Battery Box Kit part number change for different countries. To find the correct part number for your country, contact your Customer Service Representative by Phone, Fax or Technical Support.
