Wired connections

1238888

The Quantum connects to the computer using a standard USB cable, or a standard Ethernet cable. High speed operation is supported.

Complete all cable connections before applying power to the computer and the Quantum.

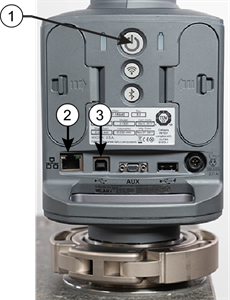

① On/Off Button ② Ethernet Port ③ USB Port

Figure 2-14 Quantum wired communication ports

For more information, see Wired connections.

You can also connect your Quantum to your computer using standard wireless connections. See Wireless Connections.

USB Cable

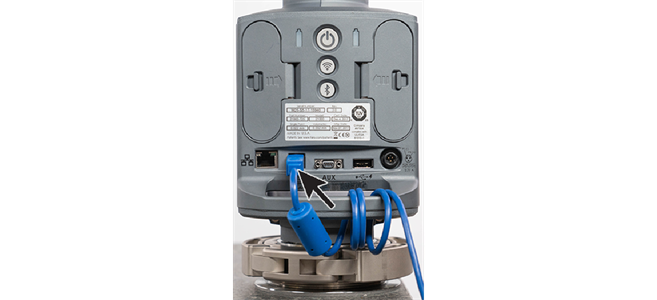

To prevent pin damage to the USB connector, wrap the USB cable around the base handle a few times before connecting.

Figure 2-15 USB Cable
