Hide or Display Multiple Sheets

1238888

If a project has multiple sheets, you can turn the visibility of sheets on or off. This is helpful if you want to visualize specifics in the individual sheets.

  1. Click the icon in the view settings and filter toolbar.

  2. Click the eye icon behind a sheet to hide or display it, see figure below.

or

  1. Click the label of the sheet to display only this sheet and hide the others.

One sheet must always be visible.

Hiding and displaying sheets is possible in the Sphere XG views and in the mini view.

Figure 1-105 2D view with one sheet displayed

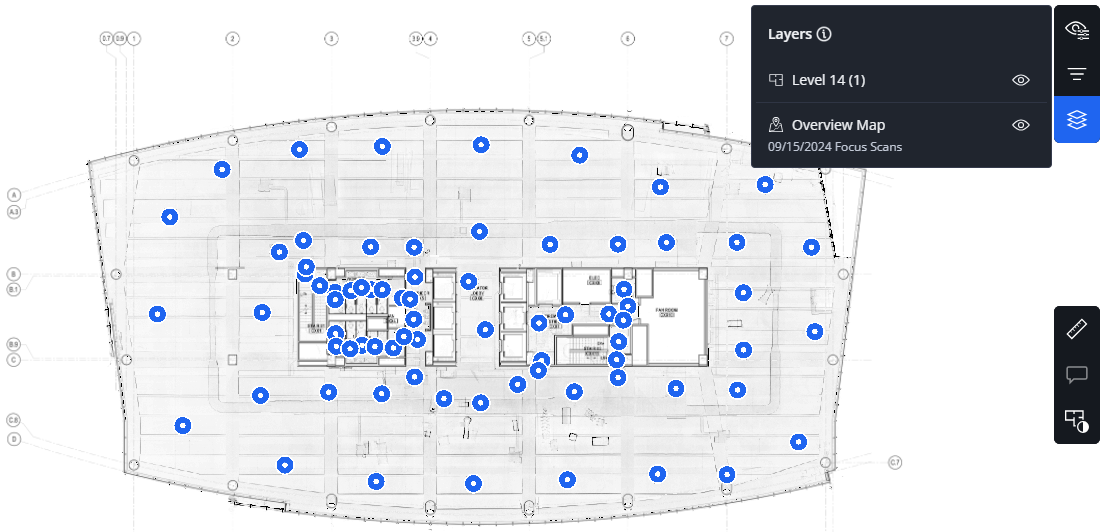

Figure 1-106 2D view with two sheets displayed

You can also increase the visibility of sheets by changing the opacity of the displayed sheets, point clouds and 3D models. See Make Sheet, 3D Model or Point Cloud Visible in Your Project for further information.
