Move a Data Set to another Sheet
If your project has multiple sheets, you can move a data set, for example a point cloud or a mobile scan, to another sheet.
-
If you move a data set to another sheet, the previous alignment will be lost.
-
This option is only available for Sphere XG data sets or Orbis data sets. You cannot move data sets that were uploaded from SCENE.
-
In the project structure view, go to the data set that you want to move.
-
Click the three-dots icon
to open the context menu. -
Select menu entry Move.

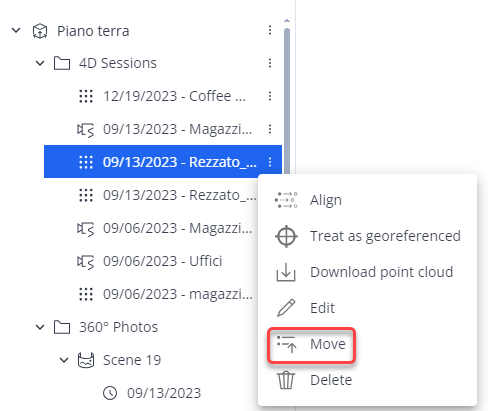

Figure 1-90 Move data set
The following form is displayed:

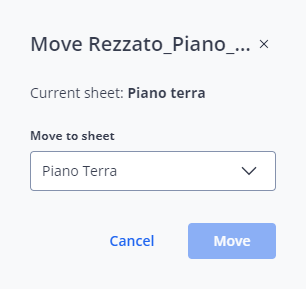

Figure 1-91 Select sheet
-
Select the sheet to which you want to move the data set and click the Move button.
