Move Waypoints within an Area

1238888

In the 2D view, you can move the following waypoints to a new position:

This is the generic waypoint icon. You can move such a waypoint if it contains a 360° image (static HoloBuilder captures, see Capture 360° photos and create tours with the JobWalk App).

Waypoint with a 2D image (without position information).

 2D image.

 Location marker, see also Set Location Markers and Add 360° Images.

With this option, you can only move the waypoint within the same area. See Move Waypoints to another Area if you want to move a waypoint to a different area.

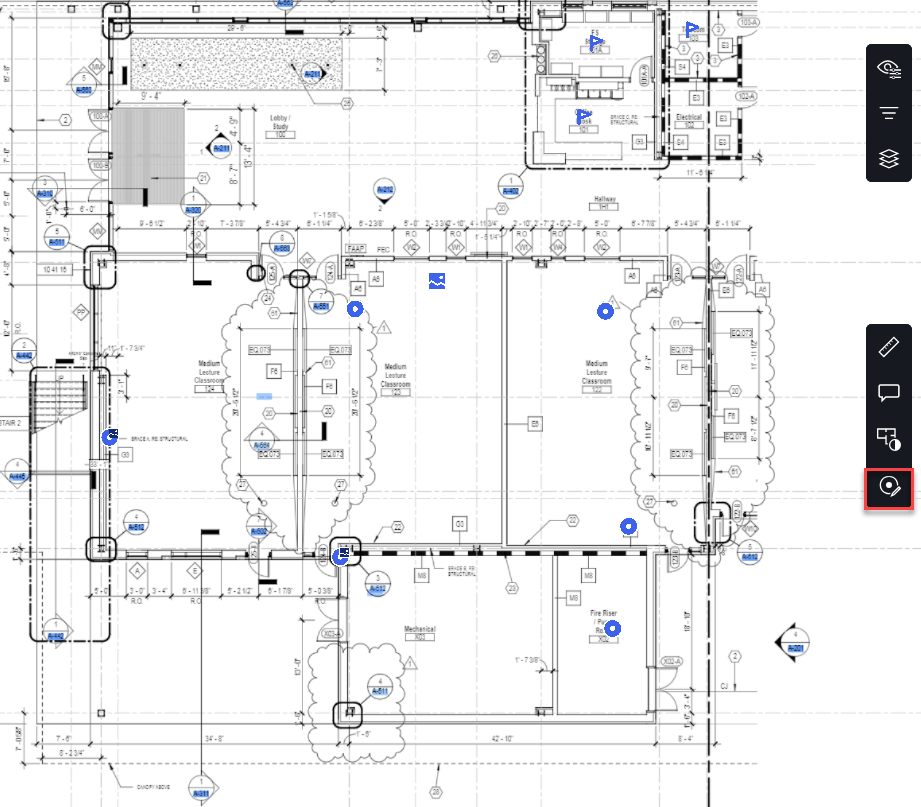

Figure 1-141 Edit waypoints in the 2D view

1. Click the icon in the toolbar on the right side.
   The icon turns blue.

2. Click and hold the waypoint you want to move.

3. Drag the waypoint to the new position.

4. Click Apply changes in the toolbar at the bottom to save your changes.

Figure 1-142 Edit waypoints toolbar

In this toolbar you can also undo or redo your latest change, cancel the operation and set location markers.
